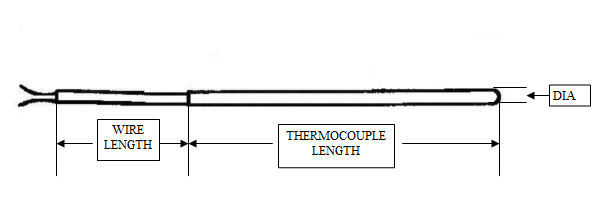

Type J Thermocouples
| Therm-Coil Model Number |
Lead Wire Length |
Thermocouple Length |
Dia. |
|---|---|---|---|
| 337X-1000-003 | 18" | 12" | 1/8" |
| 337X-1000-004 | 84" | 12" | 1/8" |
| 337X-1000-005 | 18" | 6" | 1/8" |
| 337X-1000-006 | 48" | 3" | 5/16" |
| 337X-1000-007 | 48" | 6" | 1/8" |
| 337X-1000-008 | 36" | 22" | 5/16" |

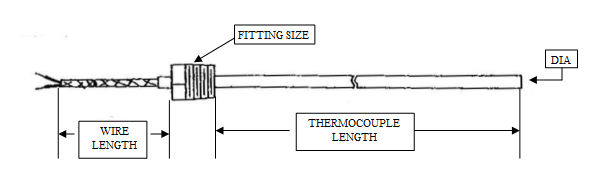

Type J Thermocouples With Bushings
| Therm-Coil Drawing Number |
Dia. | Thermocouple Length |
Lead Wire Length |
Fitting Size & Material |
|---|---|---|---|---|
| 337X-1002-001 | 3/16" | 18" | 24" | 1/4" Brass |
| 337X-1002-002 | 3/16" | 18" | 12" | 1/4" Brass |
