A.O. SMITH REPLACEMENT ELEMENTS
| Single Phase Model Number |
Three Phase Model Number |
KW | Volts | C |
|---|---|---|---|---|
| AOSF-6021 AOSF-6041 AOSF-6051 |
AOSF-6023 AOSF-6043 AOSF-6053 |
6 6 6 |
208 240 480 |
18-7/16" 18-7/16" 18-7/16" |
| AOSF-9021 AOSF-9041 AOSF-9051 |
AOSF-9023 AOSF-9043 AOSF-9053 |
9 9 9 |
208 240 480 |
21-1/8" 18-7/16" 18-7/16" |
| Single Phase Model Number |
Three Phase Model Number |
KW | Volts | C |
| AOSF-12021 AOSF-12041 AOSF-12051 |
AOSF-12023 AOSF-12043 AOSF-12053 |
12 12 12 |
208 240 480 |
18-7/16" 18-7/16" 18-7/16" |
| AOSF-13521 AOSF-13541 AOSF-13551 |
AOSF-13523 AOSF-13543 AOSF-13553 |
13.5 13.5 13.5 |
208 240 480 |
18-7/16" 18-7/16" 18-7/16" |
PVI (PRESSURE VESSELS) and
VULCAN HEATERS REPLACEMENT ELEMENTS

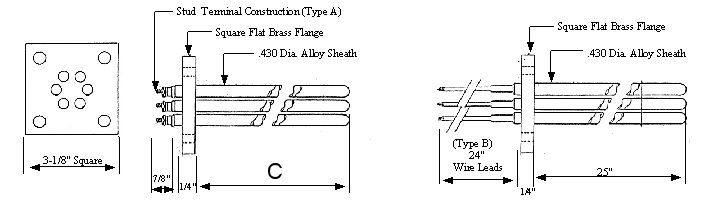

| Three Rods -1 or 3 Phase - 3-1/8" Square Flange | ||||
|---|---|---|---|---|
| Thermcoil Drawing Number |
Model Number |
KW | Volts | Terminal Detail |
| 378F-1362-010 | BPV-4523 | 4.5 | 208 | A |
| 378F-1362-011 | BPV-4543 | 4.5 | 240 | A |
| 378F-1362-012 | BPV-4553 | 4.5 | 480 | A |
| 378F-1239-008 | BPVL-4523 | 4.5 | 208 | B |
| 378F-1239-009 | BPVL-4543 | 4.5 | 240 | B |
| 378F-1239-010 | BPVL-4553 | 4.5 | 480 | B |
| 378F-1239-001 | BPV-9023 | 9 | 208 | A |
| 378F-1239-002 | BPV-9043 | 9 | 240 | A |
| 378F-1239-003 | BPV-9053 | 9 | 480 | A |
| Three Rods -1 or 3 Phase - 3-1/8" Square Flange | ||||
| Thermcoil Drawing Number |
Model Number |
KW | Volts | Terminal Detail |
| 378F-1239-001 | BPVL-9023 | 9 | 208 | B |
| 378F-1239-002 | BPVL-9043 | 9 | 240 | B |
| 378F-1239-003 | BPVL-9053 | 9 | 480 | B |
| 378F-1362-016 | BPV-18023 | 18 | 208 | A |
| 378F-1362-017 | BPV-18043 | 18 | 240 | A |
| 378F-1362-018 | BPV-18053 | 18 | 480 | A |
| 378F-1239-004 | BPVL-18023 | 18 | 208 | B |
| 378F-1239-005 | BPVL-18043 | 18 | 240 | B |
| 378F-1239-006 | BPVL-18053 | 18 | 480 | B |
